AK-EH02
| Model | AK-EH02（Standard configuration15kw/30kwh) | AK-EH03（Standard configuration30kw/60kwh) |
| Module | 51.2V100AH | |
| Battery Type | L-ion(LFP) | |
| Battery capacity | 100Ah | |
| Storage | 30.72KWh | 61.44KWh |
| Cycle lfe | >4000@80%D0D@25°C | |
| Standard Voltage | 307.2V | 614.4V |
| Charge/discharge current | 50AV50A | 100/100A |
| Communication | RS485/CAN | |
| Maximum input voltage | 1000Vdc | |
| MPPT yoltage range | 180-900VDC | 180-900/630VDC |
| Maximum input power | 19500W | 45000W |
| Starting voltage | 120V | 180V |
| Maximum input current (A) | 12.5/23 | 36/36/36 |
| MPPT quantit | 2 | 3 |
| Maximum AC power | 15000VA | 30000VA |
| Standard AC power | 15000VA | 30000VA |
| Rated AC output | 380V/400V，3LN/PE | |
| Voltage output range | 380V/400V，3LN/PEVac | |
| Standard grid frequency | 50HZ/60HZ | |
| Maximum charge and discharge current | 22/22A | 45/45A |
| Power factor | ~1 (0.8leading-0.8tagging Can be set) | |
| Total harmonic distortion | <3% | |
| Grid type | 3WIN/PE | |
| Protection leve | IP54 | |

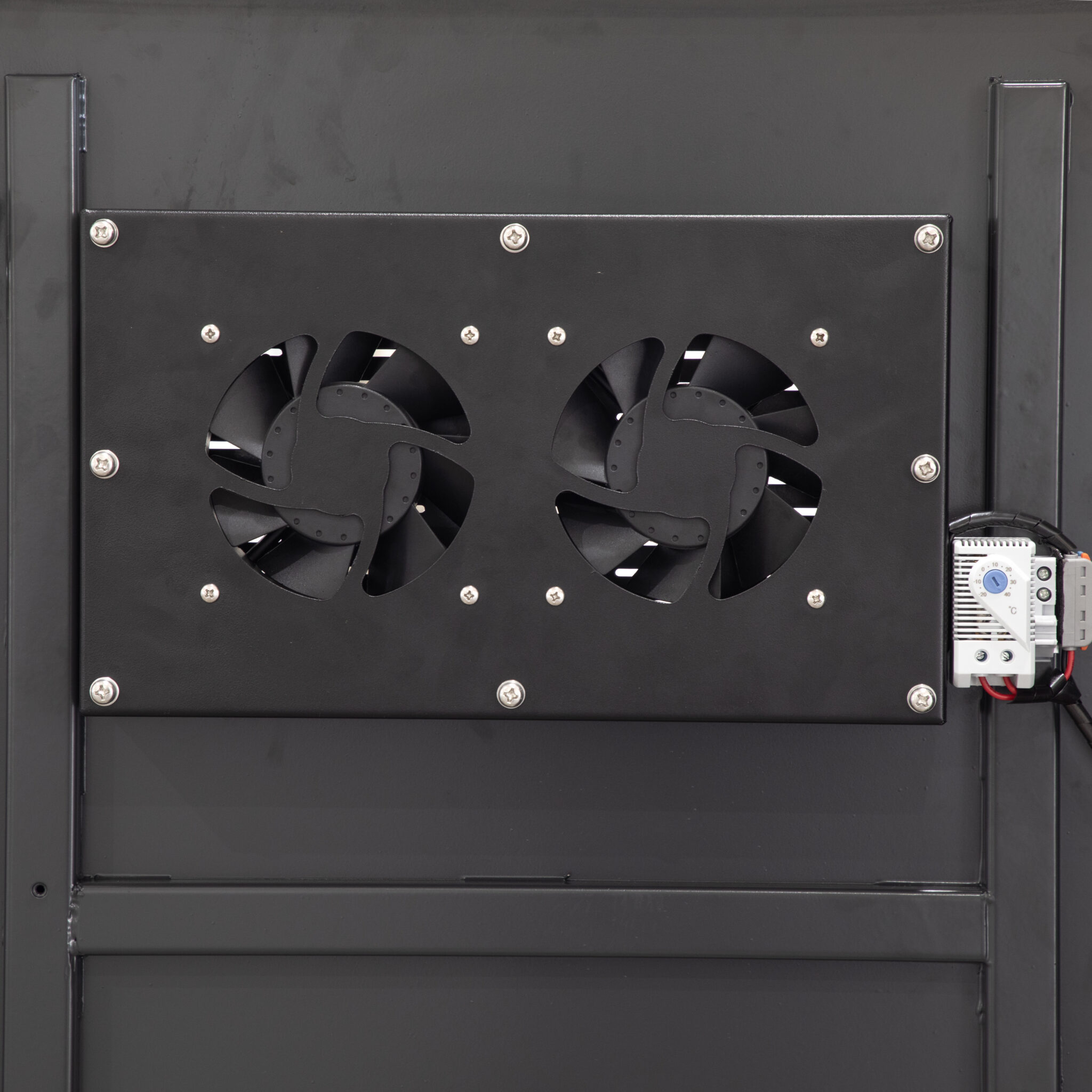

| Cool dowm | Air cooling | |
| Communication | WIFI4GILAN/CAN/RS485 | |
| Ambient temperature | -25°C~+60℃(>45°C Derating) | |
| Relative humidity | 0-90%%(non-condensing | |
| size(mm) | 800x800x1282 | 800x800x1600 |
| Weight(kG) | 452+12 | 689+24 |
