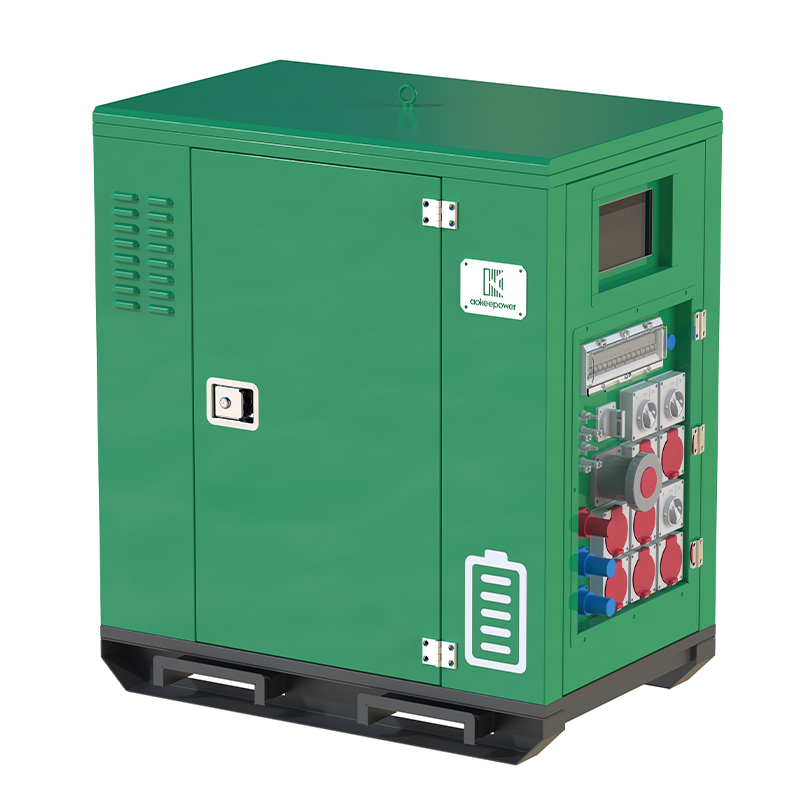

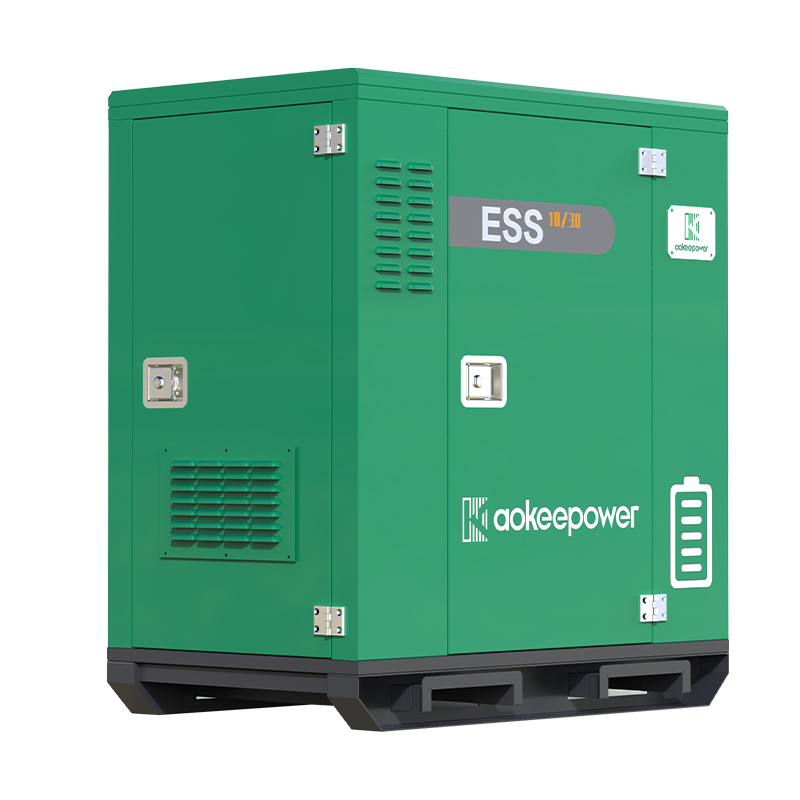

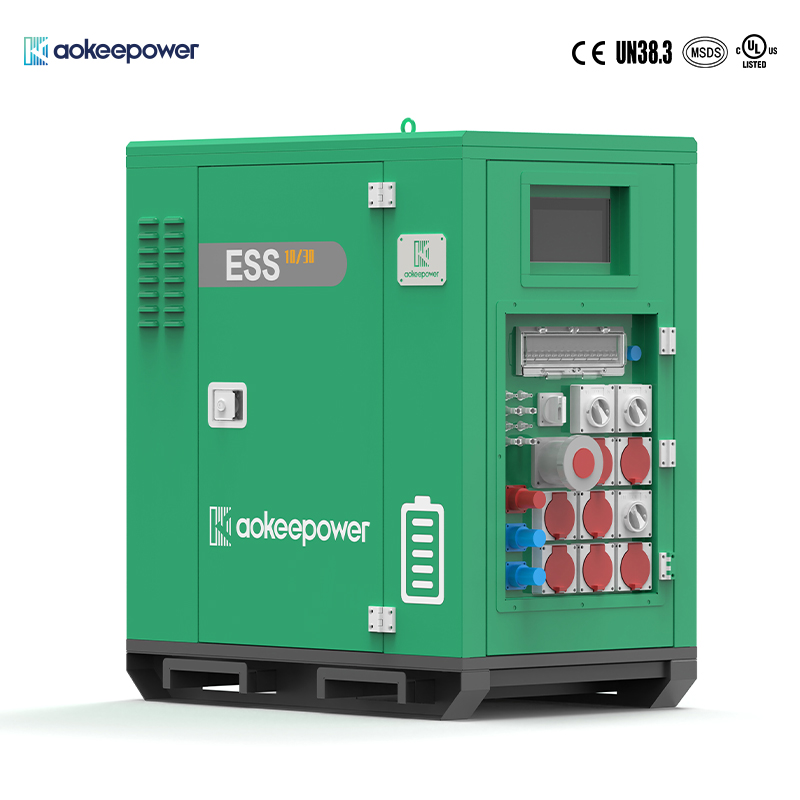

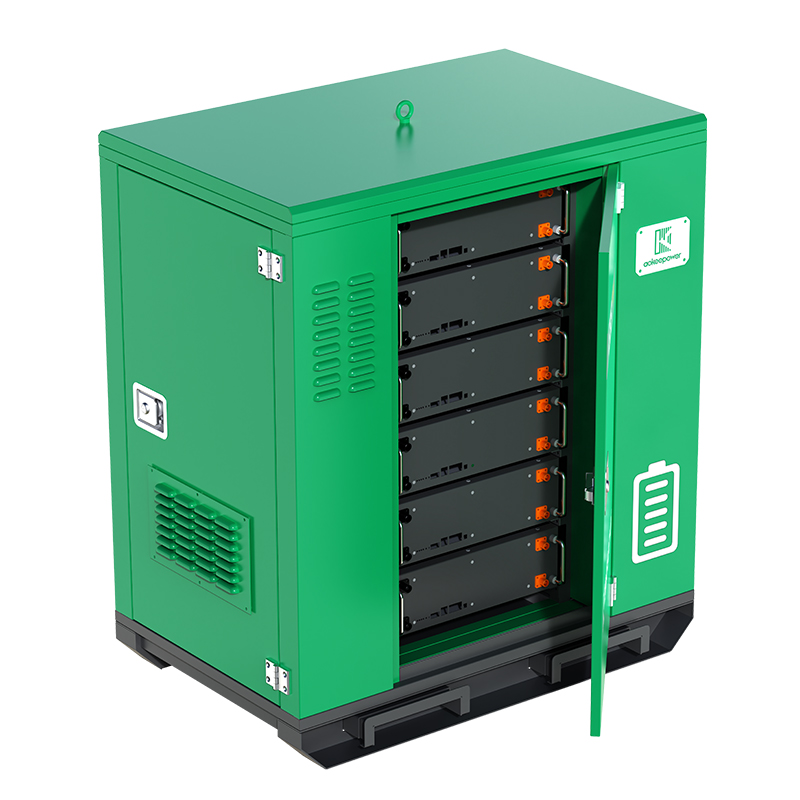

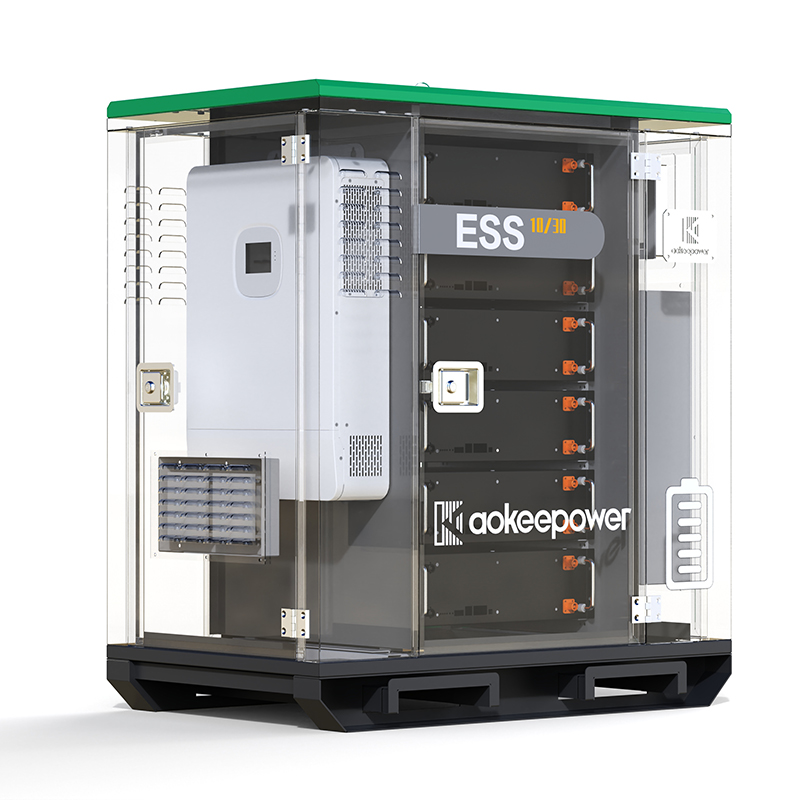

C&l Energy Storage System
| Model | SU200C100LM |
| Nominal AC Power | 100KW |
| Nameplate Capacity | 215 kWh |
| Battery Chemistry | LFP |
| Copocity | 280Ah |
| Configuration | IP240S |
| Nominal Voltoge | 768V |
| Voltage Range | 672~864V |
| Max AC Power | 100kVA |
| Nominal Grid/Islanding Voltage | 400Vac |
| Grid Voltage Range | 323~456 |
| Powwer Factor | -1…+1 |
| Nominal Grid Frequency | 50Hz |
| Degree of Protectio | IP54 |
| Noise Emission | ≤75dBA@1m |
| Operating Temperature Range | -25℃~45℃ |
| Relative Humidity | 0~95%(No condensin) |
| Max Working Altitude | 3,000m |
| Dimensions(W*H*D) | 1,300×2,430×1,300mm |
| Weight | 2500kg |
| Cooling Method of Battery Chamber | Liquid Cooling |
| Communication Protocal | CAN/485 |
| Certificate | UL1973,UL9540A,IEC62619,IEC61000 |
