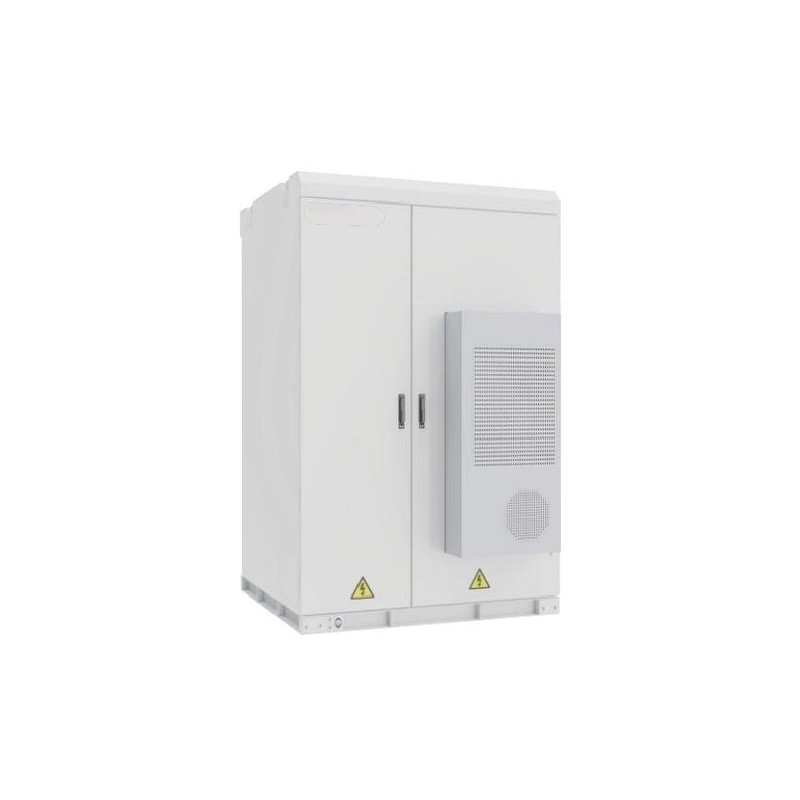

Utility Scale BESS Solution
| Model | SU340C85K/SU340C170K |
| Cell Chemistry & Format | LFP(LiFePO4),16S1P |
| Nominal AC Power | 85KW/170KW |
| Nominal Capacity | 340.48kWh |
| Battery Chemistry | LFP |
| Copocity | 280Ah |
| Configuration | 380S1P |
| Nominal Voltoge | 1,216V |
| Voltage Range | 1,064~1,368V |
| Degree of Protectio | NEMA 3R / IP54 |
| Noise Emission | ≤65dB@1m |
| Operating Temperature Range | -22°F~113°F/-30℃~50℃ |
| Relative Humidity | 0~95%(No condensin) |
| Max Working Altitude | 6,500ft/ 2,000m |
| Dimensions(W*H*D) | 1,473×2,328×1,390mm |
| Weight | 3,800kg |
| Cooling | HVAC |
| Fire Suppression System | Aerosol |
| Certificate | UL1973,UL9540A,IEC62619,IEC61000 |
