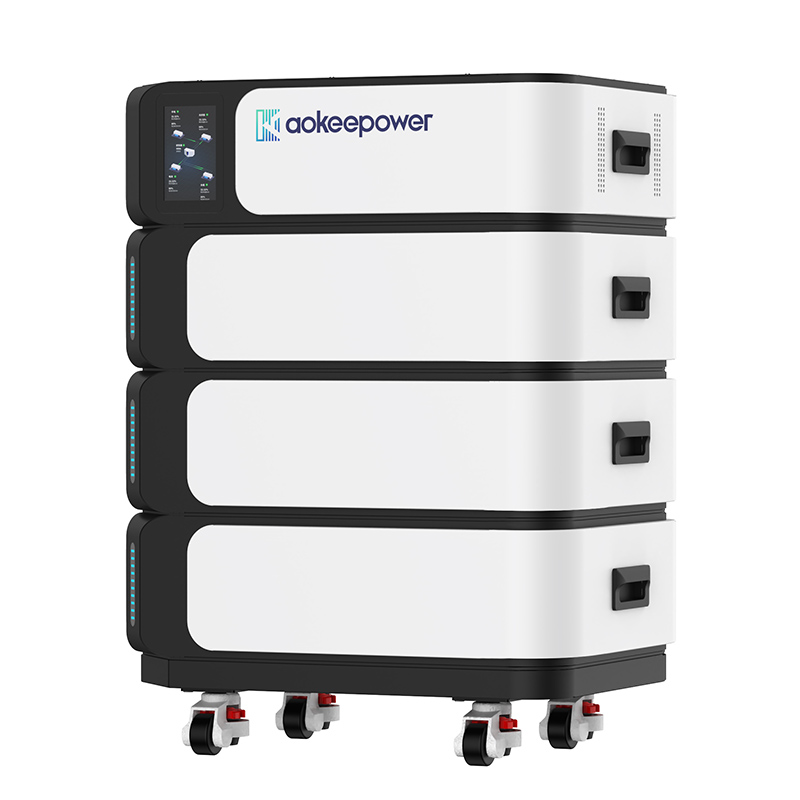

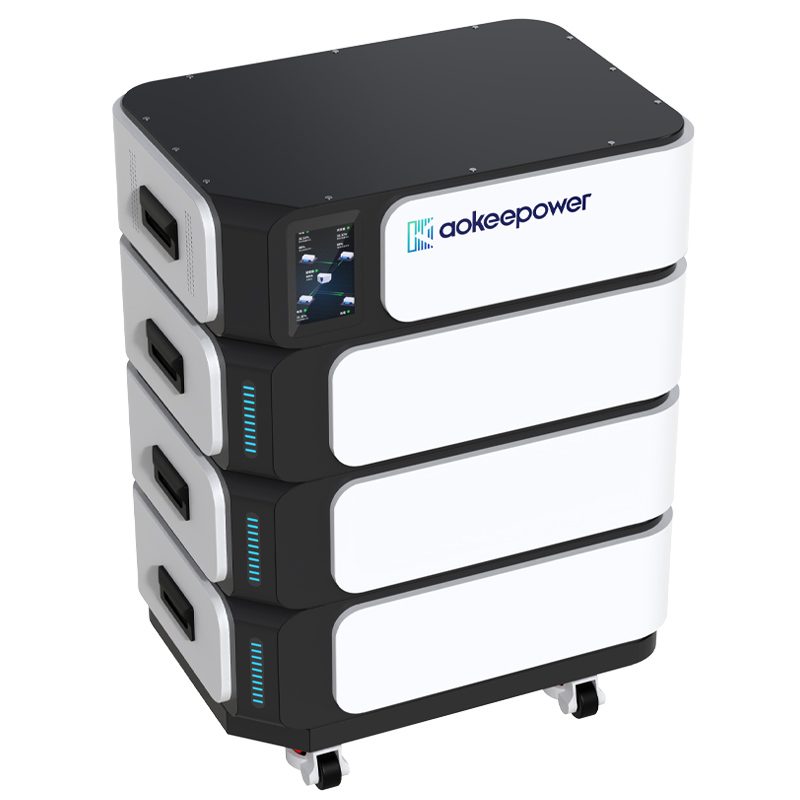

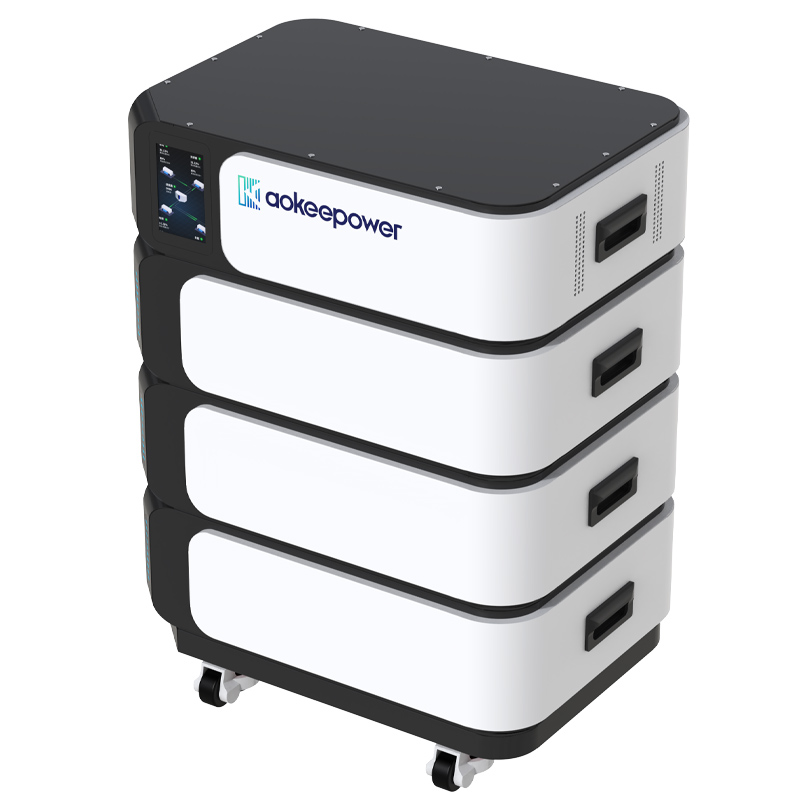

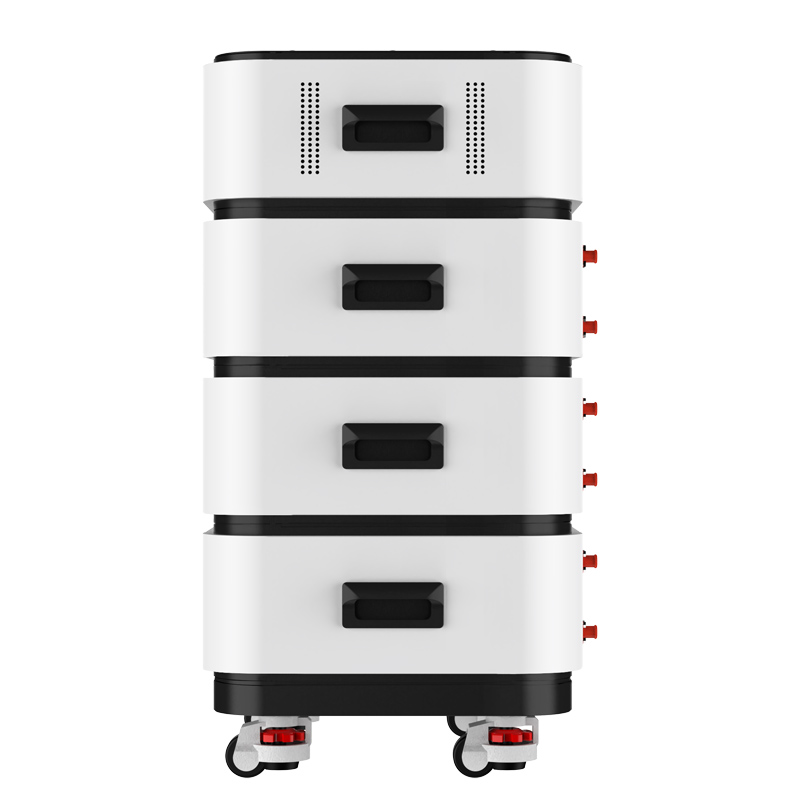

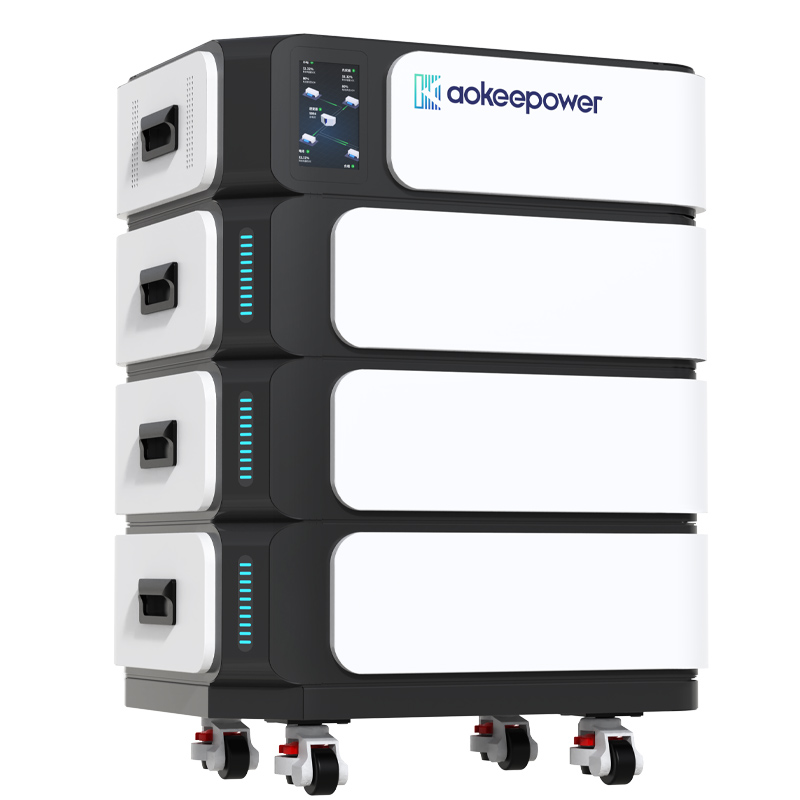

AK-EH04(48V300AH)
Model AK-EH04
Performance
Cell Chemistry & Format LFP(LiFePO4),16S1P
Nominal Capacity 100Ah*3
Battery Usable Energy 5.12kWh*3
Nominal Voltage 51.2V
Nominal Output Current 100A
BMS Protection Current 120A,1s
Charge Voltage 57.6V
Charge Current 30A
Max Charge Current 50A
Peak Charge Current 100A
Charging Mode Constant Current/Constant Voltage
Discharge Cut-Off Voltage 44V
Discharge Current 50A
Max Discharge Current 100A
Power Inverter
Nominal Output Power 5.12kWh*3
Nominal Output Voltage 230Vac
Communication
Display SOC status indicator,LED indicator
Communication CAN/RS485/RS232
General Specifcation
Dimension(L*W*H) 600X380X838Hmm
Weight 219.2KG
Charge Temperature ‘0 to 55℃(32 to 131℉)
Operating Temperature ‘-20 to 75℃(-4 to 167℉)
Storage Temperature ‘-20 to 75℃(-4 to167℉)
Environmental Humidity 0-95%RH(No condensation)
Cycle Life ≥5000 Cycles@80%DOD/25℃/0.5C,60%EOL

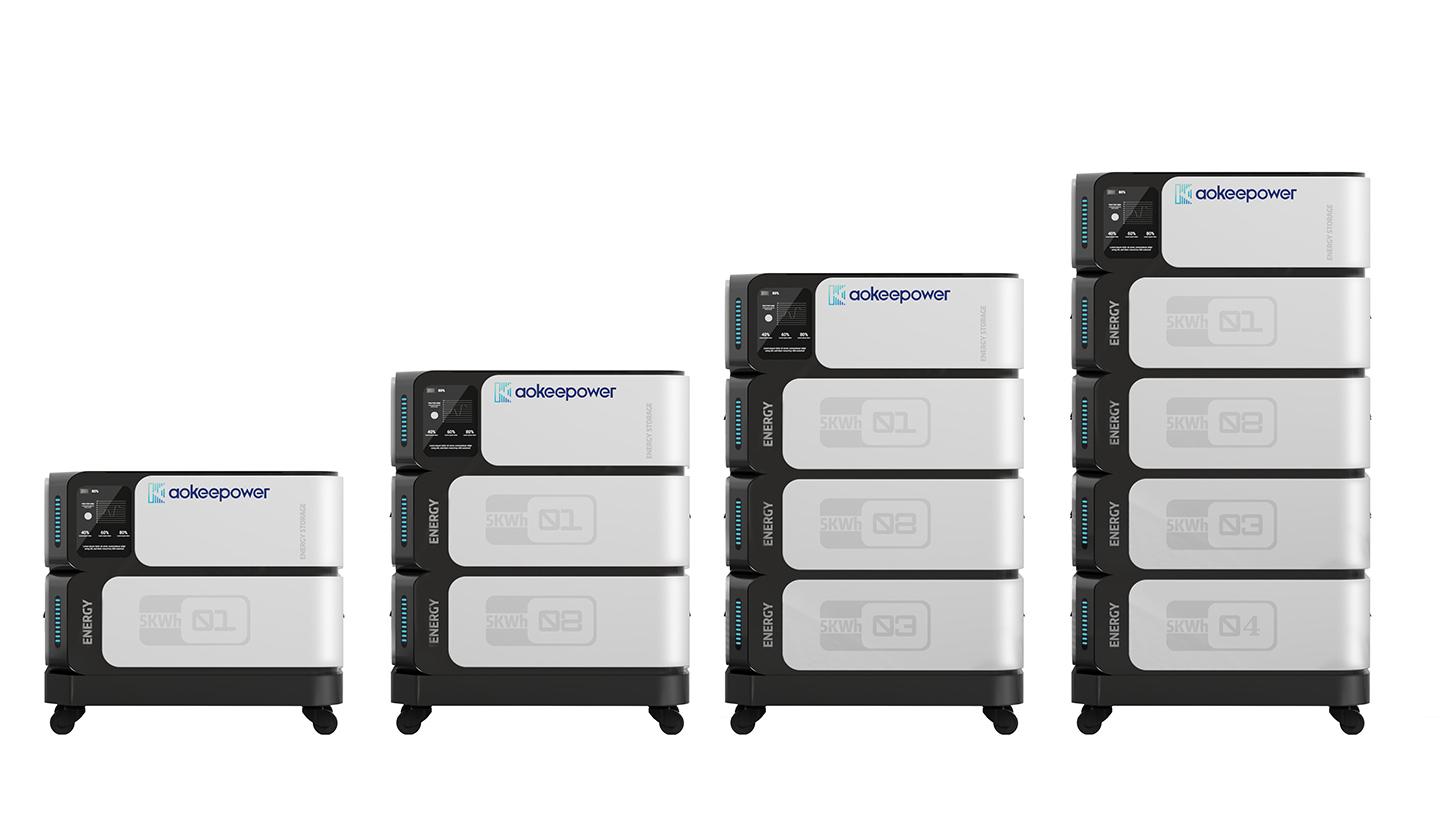

Scalability Max 15 batteries in parallel
