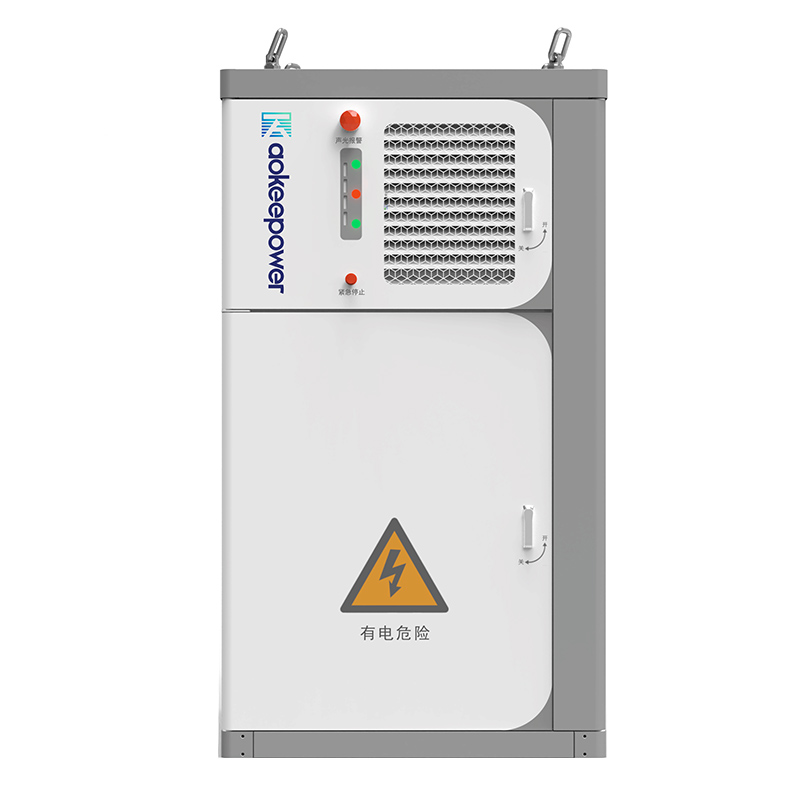

AOKEE100-215 / 200-400
Model AOKEE100-215 AOKEE200-400
Technical parameter
Battery Type LFP280AH LFP300AH
Battery PACK Configuration 1P48S/43.008kWh 1P52S/49.92kWh
Battery Cluster Configuration 1P240S 1P416S
Cooling Mode Liquid cooling
BMS balancing Mode Passive equalization
Battery Voltage Range 600V~874V 1040V~1518.4V
PCS Rated Power 100kW 200kW
Voltage Range Of The AC Side Of PCS AC320-440V AC620-760V
Grid Frequency 50±5HZ
Rated System Capacity 215kWh(@25°C,0.5C)BOL 399.36kWh(@25°C,0.5C)BOL
System Efficiency 90%
System Size (W x D x H) 1300mm*1450mm*2320mm 1420mm*1430mm*2580mm
Fire Fighting Mode Perfluorophenone spray out method and prefabricated external spray pipe
Temperature Range -20°C~55°C
Altitude <2000 m
